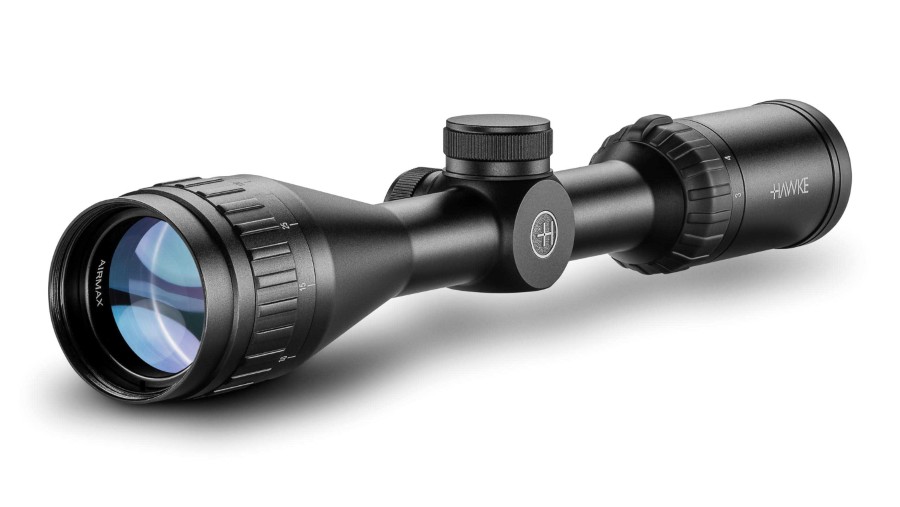

Hawke Airmax ~ 4-12x40 AO (AMX)
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Scope Tube
1 Inch
Optical System
System H2
Magnification
4 - 12x
Objective Lens
40mm
Reticle
AMX
Parallax
Adjustable Objective
Focal Plane
SFP (Second Focal Plane)
Field of View
29.9 - 11ft @100yds
10 - 3.7m @100m
Field of View (°)
5.7 - 2.1
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.39 - 0.13″
10 - 3.3mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
80 MOA
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Rubber Coated Posi-Grip
Lens Coating
Fully Multi-Coated - 16 Layers
Length
12.9in
327mm
Weight
18.4oz
522g
Turret Type (Elevation)
Capped. Low-Profile. Resettable
Turret Type (Windage)
Capped. Low-Profile. Resettable
| Brand | Hawke |
| Tube Size | 1" |
| Objective Lens | 40mm |
| Illuminated | No |
| Magnification | 4-12 |
| Shipping Details | |
| Weight: | 1.20 lb |
| Length: | 0.0 in |
| Height: | 0.0 in |
| Width: | 0.0 in |
