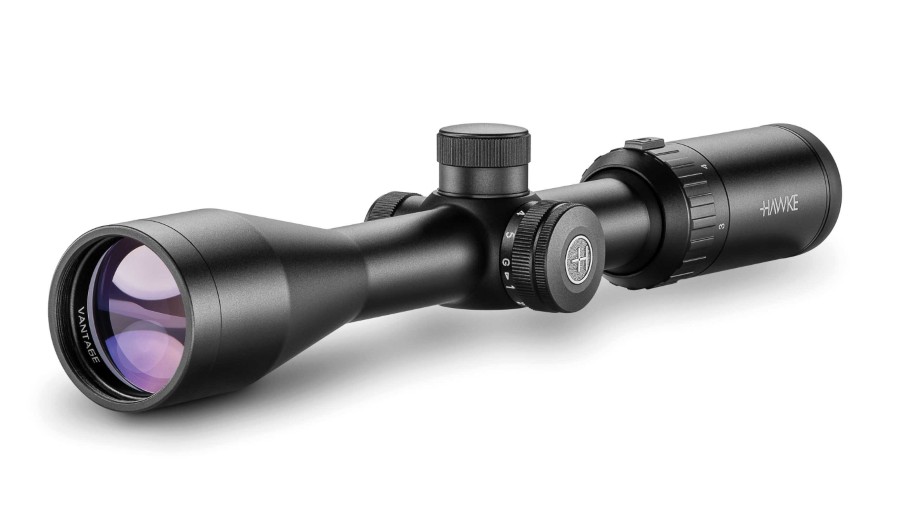

Hawke Vantage IR ~ 3-9x40 IR (.22 - HV 9x)
Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for .22 LR High Velocity. Zero on 9x magnification at 50 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 200 yards. Ideal for .22 LR ammunition between 36-40gr and approx. 1235-1260 fps (376-384 m/s). Can also be accurately calibrated for standard velocity and sub-sonic ammunition.
Scope Tube
1 Inch
Optical System
System H2
Magnification
3 - 9x
Objective Lens
40mm
Reticle
Rimfire .22 LR HV (9x)
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Fixed
Focal Plane
SFP (Second Focal Plane)
Field of View
39 - 12.7ft @100yds
13 - 4.2m @100m
Field of View (°)
7.4 - 2.4
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
75yds
69m
Exit Pupil
0.52 - 0.17″
13.3 - 4.4mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
100 MOA
Windage Turret Clicks (max)
100 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length
12.4in
315mm
Weight
15.2oz
430g
| Brand | Hawke |
| Tube Size | 1" |
| Objective Lens | 40mm |
| Illuminated | Yes |
| Magnification | 3-9 |
| Shipping Details | |
| Weight: | 1.20 lb |
| Length: | 0.0 in |
| Height: | 0.0 in |
| Width: | 0.0 in |
