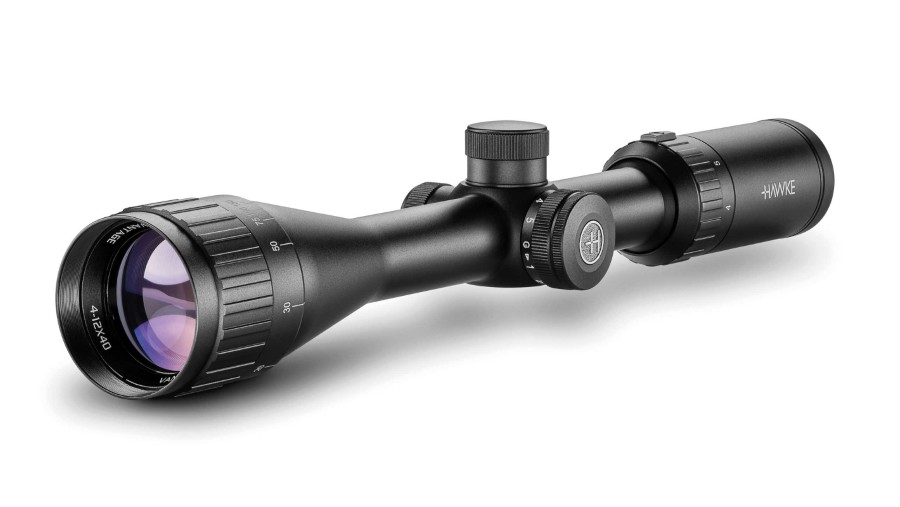

Hawke Vantage IR ~ 4-12x40 AO IR (.22 WMR 12x)
Rimfire .22 WMR Reticle
Registered reticle design exclusive to Hawke. Bullet Drop Compensating (BDC) aim points calculated for your specific caliber. Easy to zero and outstanding downrange accuracy with illuminated aim points for all lighting conditions. Distances etched into the reticle field of view, designed for use on maximum magnification.
Designed for .22 WMR. Zero on 12x magnification at 100 yards and the bullet drop compensating reticle provides accurate aim points in 25 yard increments out to 325 yards. Ideal for 33gr ammunition at approx. 2000fps. Can also be accurately calibrated for ammunition between 30-40gr and approx. 1875-2200 fps (572-671 m/s).
The scope can also be used for 100m zero with aimpoints correct in metric when the magnification is set to 10.1x.
Scope Tube
1 Inch
Optical System
System H2
Magnification
4 - 12x
Objective Lens
40mm
Reticle
Rimfire .22 WMR
Illumination
5 Levels (Red & Green)
Illumination Control
Stepped Rheostat
Parallax
Adjustable Objective
Focal Plane
SFP (Second Focal Plane)
Field of View
26.2 - 8.7ft @100yds
8.7 - 2.9m @100m
Field of View (°)
5 - 1.7
Eye Relief
3.5in
90mm
PX/Focus (Error free from)
10yds - ∞
9m - ∞
Exit Pupil
0.39 - 0.13″
10 - 3.3mm
Click Value
1⁄ 4MOA
Elevation Turret Clicks (max)
80 MOA
Windage Turret Clicks (max)
80 MOA
Ocular Type
Fast Focus
Power Selector
Knurled Posi-Grip
Lens Coating
Fully Multi-Coated - 11 Layers
Length
13.6in
346mm
Weight
18.1oz
513g
Turret Type (Elevation)
Capped. Low-Profile. Resettable
Turret Type (Windage)
Capped. Low-Profile. Resettable
| Brand | Hawke |
| Tube Size | 1" |
| Objective Lens | 40mm |
| Illuminated | Yes |
| Magnification | 4-12 |
| Shipping Details | |
| Weight: | 1.20 lb |
| Length: | 0.0 in |
| Height: | 0.0 in |
| Width: | 0.0 in |
